01-10-2005
Boost creep is an problem what is not going to disappear. We opened the wastegate by hand, and made a test run, still got an max boost of 1,0 bar at high revs. So, actually there need a lot of work to be done, to solve this. But hey, I think, I can live with it....
Still strugling with the error code 43 "sync lost". Did a lot of tests, like disconnect alternator, rewiring, replacing coil, other injection end angle, I even received an other, better interference resistance, chip from Autronic, great service. Unfortunately it did not work. Soon I am going to attach a oscilloscoop, and see what happends with the signals.
This error at about 5.000 rpm is causing a bad hesitation, I checked my log file and found out this:
The time used in third gear from 2.000 rpm to 7.000 rpm was in 2004, with the old cams:
| |
rpm |
2-3000 |
3-4000 |
4-5000 |
5-6000 |
6-7000 |
2-7000 |
| 2004 old cam |
sec |
2.585 |
1.980 |
2.145 |
2.365 |
3.135 |
12.210 |
| 2005 new cam |
sec |
2.730 |
1.715 |
1.696 |
2.454 |
2.695 |
11.290 |
| progress |
sec |
-145 |
265 |
449 |
-089 |
440 |
920 |
As you can see, most of the time acceleration gained time, but between 5.000 and 6.000 rpm, she lost time, in stead of gaining time....
If I make a table with 500 rpm:
| rpm |
2-2500 |
2.5-3000 |
3-3500 |
3.5-4000 |
4-4500 |
4.5-5000 |
5-5500 |
5.5-6000 |
6-6500 |
6.5-7000 |
7-7350 |
total |
| 2004 |
1485 |
1100 |
990 |
990 |
1009 |
1136 |
1100 |
1265 |
1320 |
1815 |
1265 |
13475 |
| 2005 |
1620 |
1110 |
805 |
910 |
890 |
806 |
1339 |
1115 |
1235 |
1460 |
1110 |
12400 |
| progress |
-135 |
-10 |
185 |
80 |
119 |
330 |
-239 |
150 |
85 |
355 |
155 |
1075 |
Now you can see she looses an horrible lot of time at about 5.000 to 5.500 rpm. It is time to solve this thing.
03-10-2005
Nothing much to say further. Car is still going strong. A dash light failed recently... :(

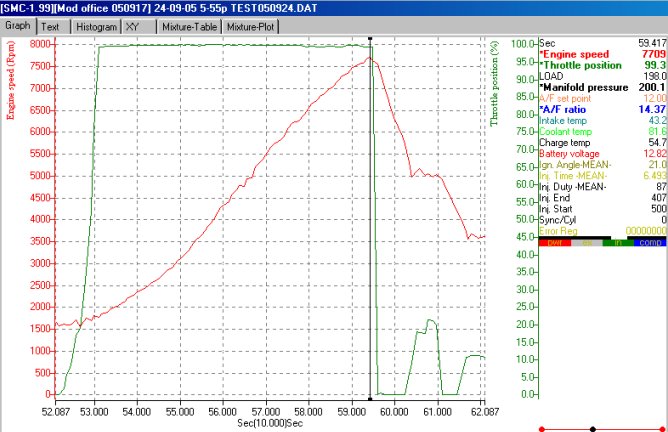

Did a little fine-tuning, add some timing, adjust A/F to an additional 11.9, and backed up water injection a little. Pushed her to redline 7,700 rpm for the first time, scary... set the rev limiter back to 7,500, that is enough for me, period!
|
